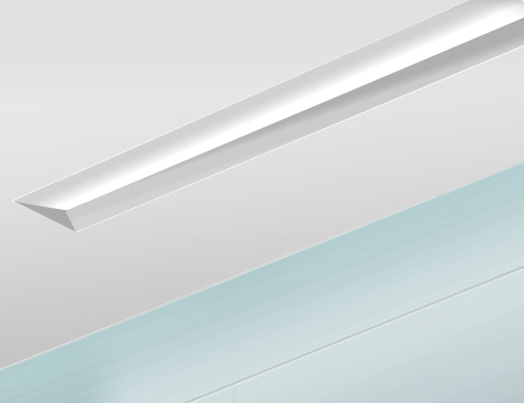

Illuminate your space with precision Slices of glare free light. The Slice family offers linear 2” profiles in recessed and below ceiling options. The 2” Surface/Pendant delivers over 900 lumens per 3 cell modules, with a modular design allowing continuous light of 2” square cells to your specified length (in 3 cell increments). Offered in surface & stem mounting and multiple CCTs.
| lumens range: | 404-882Lm |
| beam options: | WW°, 15°, 24°, 36°, 60° |
| light options: | CRI - 103, 94, 90 R9 - 72, 69 |
| source options: | 8W/ft, 16W/ft, 21W/ft |
| control options: | 0-10, DALI-2, TruPhase™ |
| BEAM SPREADS | WW° | 15° | 24° | 36° | 60° | ||
|---|---|---|---|---|---|---|---|
| SOURCE | System Watts (W) | Delivered Lumens (LM) | |||||
| SO8 | 8 | 404 pdf ies | |||||
| SO15 | 16 | 716 pdf ies | |||||
| SO20 | 21 | 882 pdf ies | |||||
CAUTION: IES FILES ARE FOR A 3 CELL MODULE. All data is based on goniometer measurements of production representative product. Measurements are taken at 3000 CCT with a black baffle and can vary +/- 10% from LED manufacturer rated flux range.
